Fire pump prices in Egypt 2024

Fire pumps are an important part of fire systems, as they play a strong role in protecting lives and property from the danger of fires. The function of these pumps is to pump water at a high rate to the fire sprinkler network or fire hoses.

This ensures a quick and effective response in emergency situations because sufficient amounts of water are provided through fire pumps at appropriate pressure to extinguish fires and prevent their spread.

These pumps vary between electric and diesel types, which ensures ease of operation even in the most difficult conditions. In this article, we will convey to you the importance of fire pumps, what are their main components and different types, and how to maintain them to ensure effective performance through Taiba Hydraulic Products Company.

Fire pump room design

The fire pump room consists of a group of basic elements that ensure the efficient and effective operation of the fire fighting system. These components include the following:

• Suction Pipe
  • This part connects the tank and the pump room, and draws water from the tank to feed the fire pumps.

• Vortex Plate
  • If this part is not present, air will accumulate on the suction line, leading to the formation of bubbles and cavitation. The Vortex Plate changes the direction of the water in two stages to prevent the accumulation of vortex.

• Gate Valve OS & Y
  • An isolation valve and an exhaust line are installed on the fire pump suction line. This valve facilitates the maintenance process by closing it.

• Check Valve
  • It prevents water from returning from one pump to another after the pump stops working, and is installed on the ejection line of each pump.

• Automatic Air Release
  • An air drain cock is installed on the base of the Fire Pump to ensure that air exits frequently and does not accumulate inside the pump.

• Pressure Relive Valve
  • It opens automatically when the pressure rises to drain the excess pressure out of the network, preventing the pressure from backing up and causing problems.

• Flexible Coupling / Strain Relief
  • It prevents the vibrations generated by the motor from reaching the tanks, which may cause water leakage. These connectors are made of rubber and are approved.

• Test Line
  • Used to test electric and backup pump. A water meter is installed on the test line, and when testing, the valve is opened and the pump is turned on from the control panel.

• Eccentric Reducer
  • It works to prevent the occurrence of air pockets that may cause cavitation in the pipes.

• Control Panel
  • The control panel is an essential part of the fire pump system, as it ensures the smooth and effective operation of the pumps in emergency situations. It consists of a group of devices and components that allow monitoring and managing the operation of the pumps safely and effectively.

• Diesel Engine Muffler
  • It is a diesel engine silencer. It is a vital part of the exhaust system of diesel engines used in fire pumps, as it improves the working environment and reduces noise pollution by absorbing engine sound.

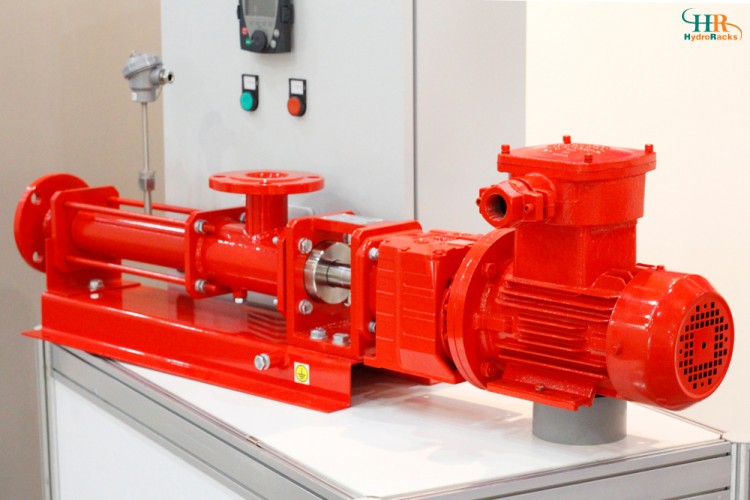

The best types of fire pumps

There are many types of fire pumps to meet all safety requirements and diverse operating conditions within each facility. Here are the most prominent types used:

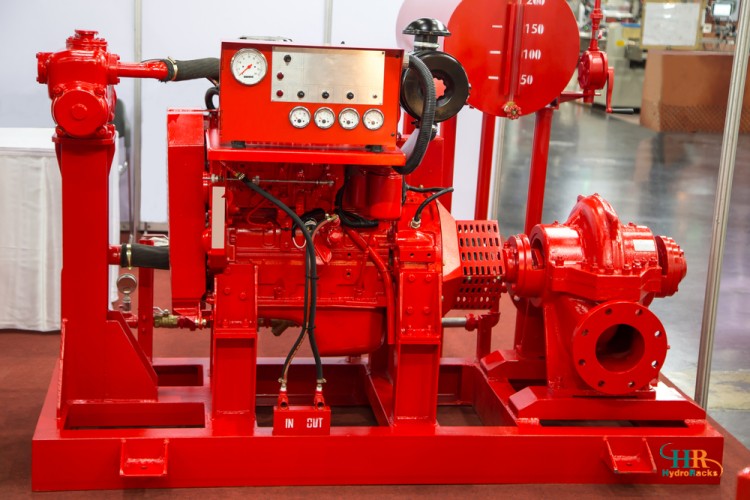

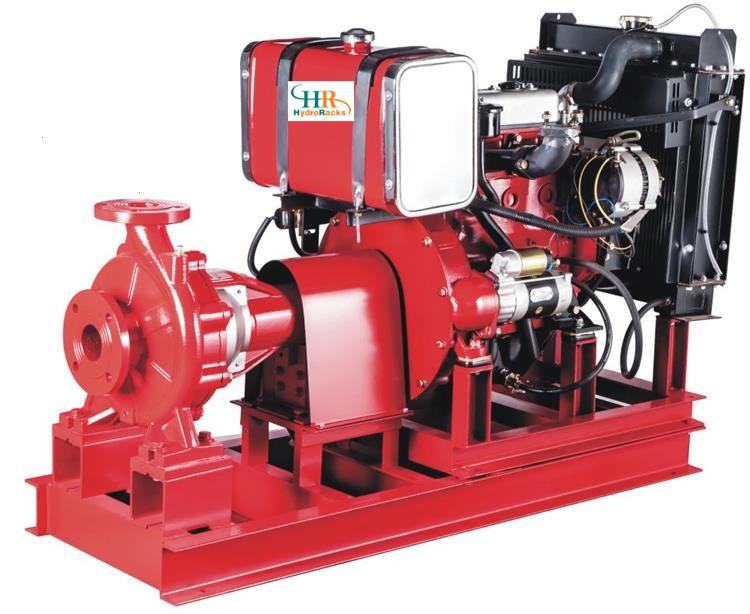

• Diesel Fire Pumps: These pumps are powered by a diesel engine and are used when the electricity source is unavailable during an outage. They are suitable for use in difficult conditions and environments that require great care.
• Centrifugal Fire Pumps: It is considered one of the most common types inside commercial and industrial buildings, as it works to convert the kinetic energy of water into high pressure energy, allowing large amounts of water to be pumped.
• Electric Fire Pumps: These pumps rely on an electric motor and provide high water pressure. One of their most important features is that they are easy to maintain.
• UL FM Fire Pumps: Accredited by the two most important international organizations for quality and safety standards, UL FM fire pumps also provide high protection for facilities and lives.
• Jockey Pumps: It is used to maintain the water pressure in the system at a certain level to avoid frequent starting of the main pump, and works automatically to compensate for any slight drop in pressure.



• Emergency Fire Pumps: Designed for emergency use when the main system is unavailable or malfunctioning, fire pumps are often portable and used in remote locations or extreme conditions.



Also learn about: Fire extinguishing systems

Explanation of fire pump installation

Installing fire pumps requires precision and care to ensure their efficiency in emergency situations. Installation begins with determining the appropriate location for the pump room, which must be near the main water source such as a water tank or public water network.

Suction pipes that draw water from the water source are connected to the pump room and contain a blocking plate For Dumat Vortex Plate to prevent air bubbles from forming.

Then the main pump, whether electric or diesel-powered, is installed on a fixed base to reduce vibrations. The Discharge Pie line is connected to the pump so that the pressurized water is directed to the fire-fighting system, Gate Valves and Check Valves are added to ensure water flow is controlled and prevent backflow.

The jockey pump is used to maintain system pressure and avoid frequent operation of the main pump. A control panel is installed to manage and monitor the operation of the pumps and includes pressure sensors and alarms to ensure rapid operation in emergency situations.

Finally, flexible connections are added to reduce vibrations and prevent water leakage, and pressure relief valves are installed to protect against pressure increases.

Fire pump prices in Egypt

It is difficult to set fixed prices For pumps Fires, as their cost is affected by several main factors, including:

1. Pump type: The price varies according to the type of pump, whether it is diesel, electric, Juke, or other.
2. Capacity and water pumping capacity: The pump capacity and its ability to pump water affect the cost.
3. Brand: Prices vary based on brand and quality.
4. Technical specifications: Includes materials used in manufacturing and techniques used.
5. Certificates and accreditations: Such as FM and UL certifications, which reflect quality and safety standards and affect the price.

In addition to these factors, maintenance, installation, and other service costs must be taken into account when calculating the total cost. For more details about prices and available services, please contact us via the numbers shown, and we will be happy to answer all your inquiries and provide the best solutions for supplying and installing all types of fire pumps, as we excel in this field.

UL FM fire pumps

UL FM fire pumps are among the most prominent firefighting systems thanks to their excellence in international quality standards, as they have a guarantee from the two most powerful fire fighting organizations, namely the FM (Factory Mutual) certificate and the UL (Underwriters Laboratories) certificate, as they are approved after passing precise tests. To ensure its ability to work in emergency situations.

Design UL FM fire pumps provide a continuous flow of water, which significantly helps in firefighting efficiency. These pumps feature advanced technical specifications.

UL FM certified fire pumps are used in large facilities, industrial and commercial facilities where a high protection system is required to ensure security and safety.

Availability Teba company Teba provides comprehensive maintenance and installation service support, ensuring its optimal operation over time. When you choose UL FM fire pumps, you guarantee the firefighting system in your facility with the highest safety standards, which provides protection for all property and lives at all times.

NFPA 20 fire pump specifications

The NFPA 20 fire pump specifications must adhere to some basics, design and installation requirements to ensure their effectiveness and degree of safety in emergency situations in accordance with NFPA 20.

Fire pumps must be designed to provide the required flow and pressure accurately and efficiently in line with the needs of the fire fighting system. The most important specifications are that fire pumps start working quickly in a short time of receiving operating signals with the ability to operate automatically or manually.

The specifications also impose the necessity of selecting pumps regularly to ensure their ability to perform under different operating conditions, as they should be The pump Made of corrosion and rust resistant materials.

Fire systems maintenance PDF

Maintenance of fire systems is an important matter to ensure their effectiveness in times of emergency, as maintenance includes periodic inspection of all components of the system, including fire pumps, sprinkler systems, and alarm devices, to ensure that they are working properly when needed.

You can take a look at the PDF on fire pump maintenance, and you can also contact us on our phone numbers if you have any questions about fire systems.
